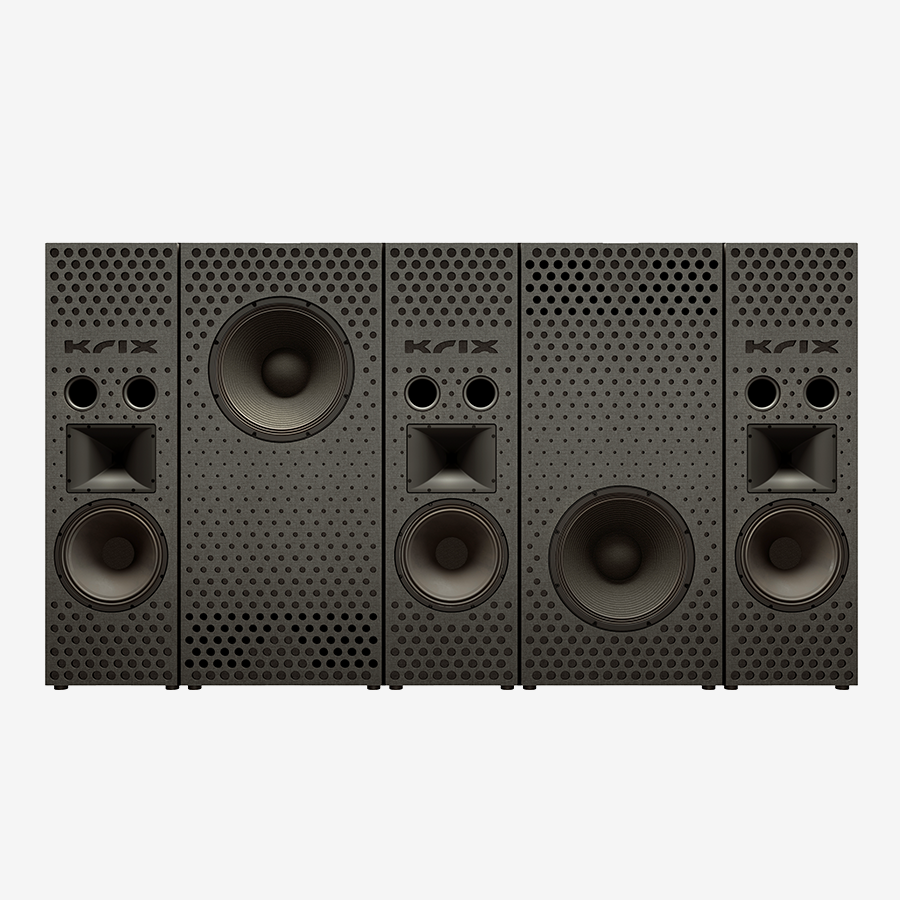

MX-20 Mk2

Modular

Designed for dedicated home cinemas with an acoustically transparent screen, the MX-20 Mk2 delivers even greater power, clarity and control than its predecessor.

$ 1.00

Per System

Cinema Black

Per System

FIND A DEALER

SAVING...

explore the evara range

From bookshelf speakers to matching subwoofers, designed to sound as good together as they look.

view the collection

looking for something new?

Explore the new Equinox Evara and Seismix 1 Evara, featuring five new contemporary finishes and sleek magnetic grilles.

exlore the evara range

specifications

SYSTEM RECOMMENDATIONS

Recommended room depth
4m – 7m

Minimum screen size 16:9
105″ (2324mm x 1308mm)

Minimum screen size 21:9
130″ (3035mm x 1301mm)

‍

LCR SPEAKER MODULES

Frequency range
40Hz-20kHz in room response

Power handling
100 – 700 Watts RMS recommended amplifier power

Sensitivity
95dB for 2.83 volts at 1 metre

Impedance
8 Ohms

Configuration
2-way

Low frequency driver
Single 300mm (12”) paper cone driver. 63.5mm (2.5”) voice coil wound on high powered kapton former, with ventilated magnet assembly and copper shorting ring for low distortion

High frequency driver
A Krix patented, short throw constant directivity horn, driven by a compression driver with a 25mm (1”) throat, featuring a 35mm (1.4”) voice coil, coated titanium diaphragm and polyimide surround

Dimensions
1220mm high x 365mm wide x 295mm deep (2210mm wide including subwoofer modules)

Weight
31kg each

‍

SUBWOOFER MODULES

Frequency range
25Hz-200Hz in room response

Power handling
200 – 1400 Watts RMS recommended amplifier power

Recommended processing
High pass filter: 25Hz 24db / Octave Butterworth Limiter: 1000W (8 Ohms)

Sensitivity
96dB for 2.83 volts at 1 metre

Impedance
8 Ohms

Configuration
Bass reflex, front vented, dual terminals so cabinet orientation can be reversed

Low frequency driver
Single 380mm (15”) paper cone driver with 100mm (4”) edge-wound copper voice coil, dual spider assembly and vented magnet assembly

Dimensions
1220mm high x 550mm wide x 295mm deep (2210mm wide including LCR modules)

Weight
40kg each

description

Designed for dedicated home cinemas with an acoustically transparent screen, the MX-20 Mk2 delivers even greater power, clarity and control than its predecessor. A new 12-inch mid-bass driver, high output compression driver and Krix-patented constant-directivity horn, bring improved precision and effortless dynamics to every soundtrack.

Built for rooms four to seven metres long, the five slim, easy-to-install modules feature acoustic-absorbent front baffles, reducing reflections from the screen and enhancing dialogue. With high sensitivity and power handling, and reversible cabinet orientation for the subwoofer modules, the Mk2 is engineered for improved performance and seamless integration.

Reversable sub design: Dual terminals allow the subwoofer cabinets to be oriented up or down, ensuring flexibility for any room layout.

Patented horn technology: A patented constant-directivity horn and one-inch compression driver provide controlled dispersion and precise high-frequency detail.

Modular design: The MX-20 Mk2 features five slim, acoustically-treated modules, all the same height and depth for ease of installation.

For the ultimate cinema experience at home, play it through Krix.
