Matt's Dream Cinema Retreat

A purpose-built cinema experience

For movie enthusiast Matt, creating a dedicated home cinema wasn't simply about installing a projector and surround sound system, it was about delivering a truly immersive cinematic experience that could rival a commercial theatre.

The result is a purpose-built home cinema featuring a 7.1.4 speaker system, advanced acoustic treatment, smart automation and luxurious seating.

Designed for performance

The theatre measures 6.4 metres long, 4.0 metres wide and 3.0 metres high, with a custom baffle wall and projector niche incorporated into the room design.

To optimise sound isolation and acoustic performance, the room features double-lined 13mm Soundstop plasterboard, acoustic insulation throughout, and a double-stud rear wall construction. The walls and ceiling are finished in Dulux Domino, creating a dark, distraction-free environment that keeps the focus firmly on the screen.

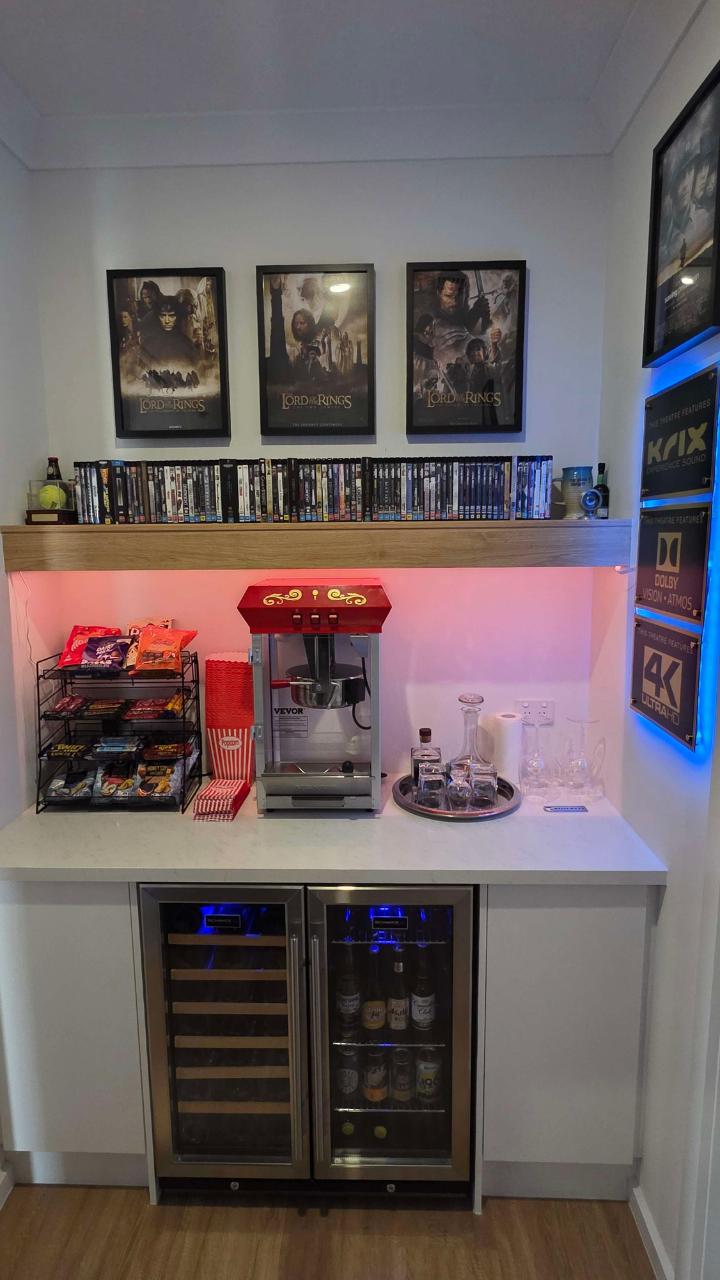

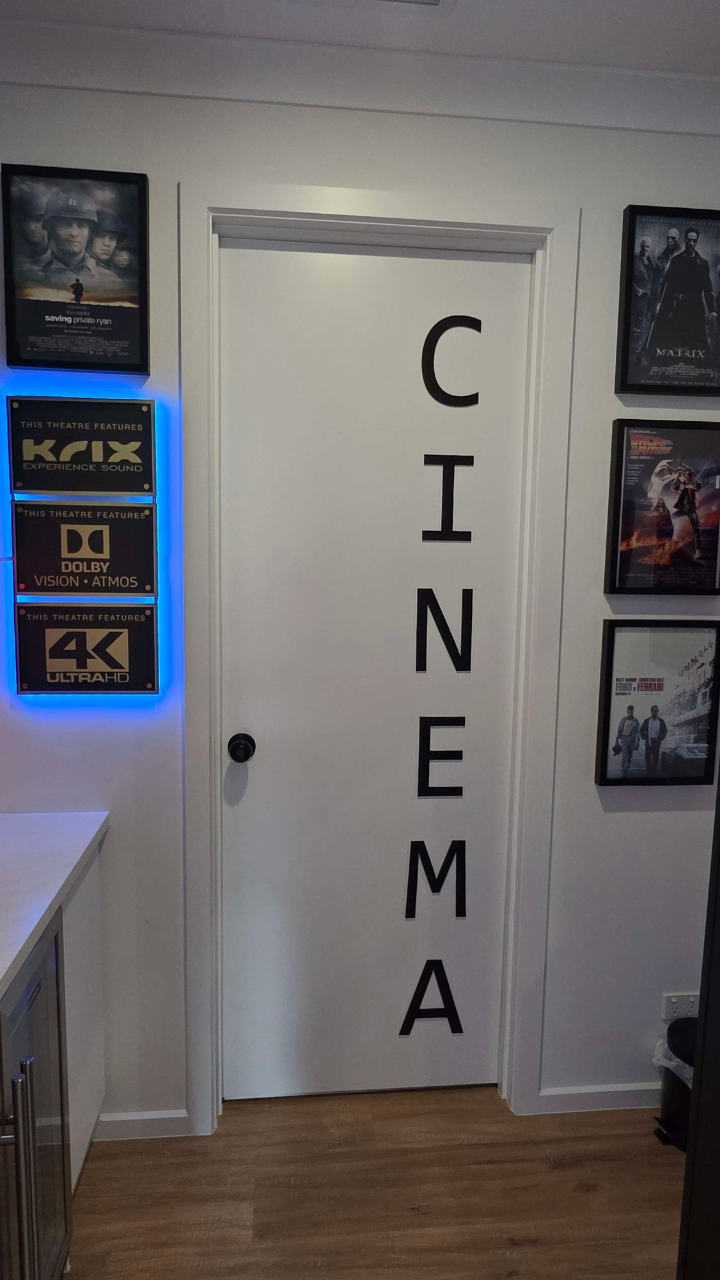

Guests enter through a dedicated snack bar area complete with a popcorn machine, beer and wine fridge, AV equipment rack, LED lighting and movie posters - setting the scene before the feature presentation even begins.

Krix sound

At the heart of the cinema is a Krix 7.1.4 speaker configuration designed to deliver powerful dynamics, crystal-clear dialogue and immersive surround effects.

Speaker configuration

Front stage

MX-20
AS-325 spacers

Listener layer surrounds

2 x Phonix Flat (side)
2 x Phonix (rear)

Upper layer surrounds

4 x IC-52 (in-ceiling)

This configuration creates a seamless three-dimensional sound field, allowing viewers to become fully immersed in every soundtrack, from subtle atmospheric details through to blockbuster action sequences.

Premium video and electronics

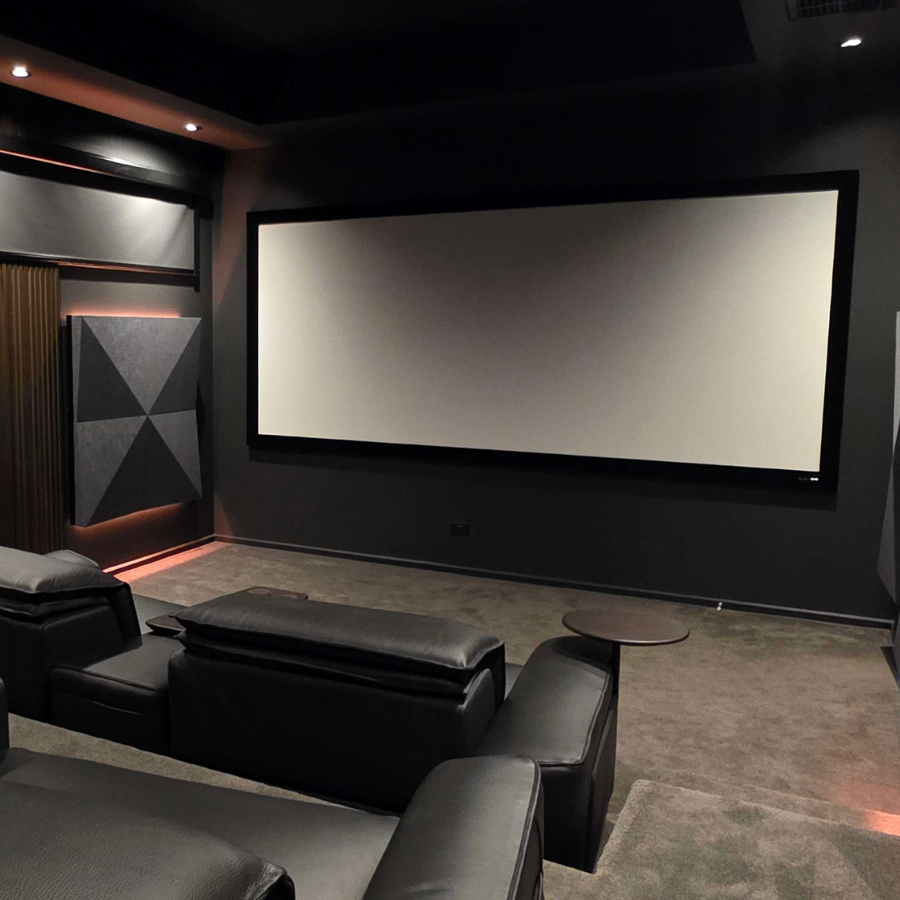

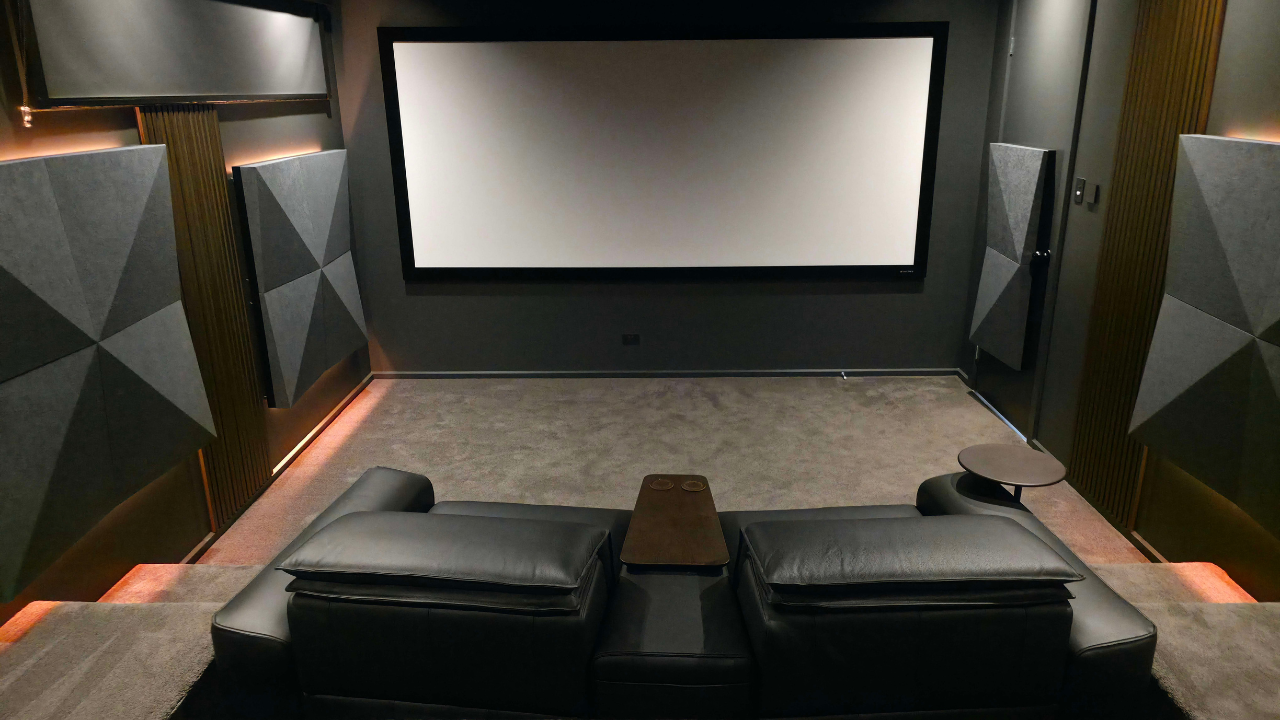

A 140-inch 2.35:1 Encore cinemascope screen is paired with an Epson LS12000B laser projector, delivering stunning image quality and true cinematic scale.

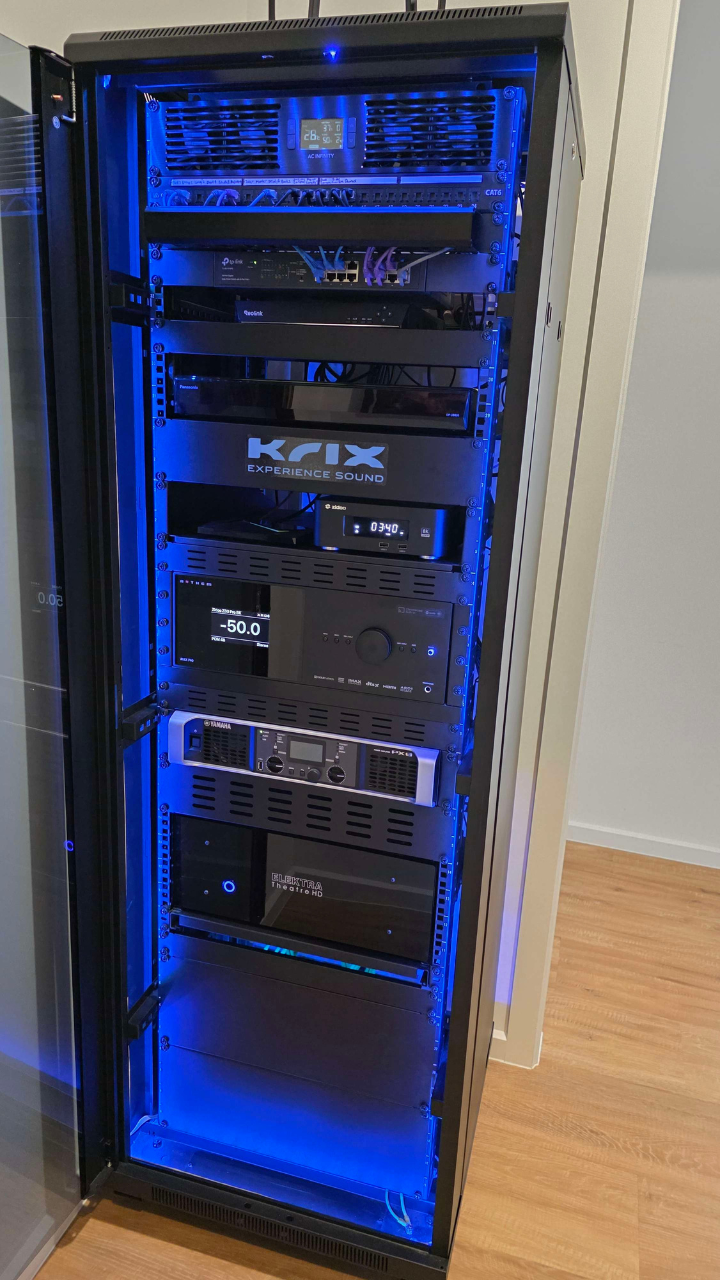

System electronics include:

Anthem MRX740 8K Receiver/Processor
Elektra HD2 7-Channel Amplifier
Yamaha PX8 Subwoofer Amplifier
Panasonic UB820 UHD Disc Player
Zidoo Z30 Pro 8K Media Player
Nvidia Shield Pro 4K

Together, the system provides exceptional performance across physical media and streamed content alike.

Acoustic treatment and comfort

To complement the speaker system, extensive acoustic treatment was incorporated throughout the room.

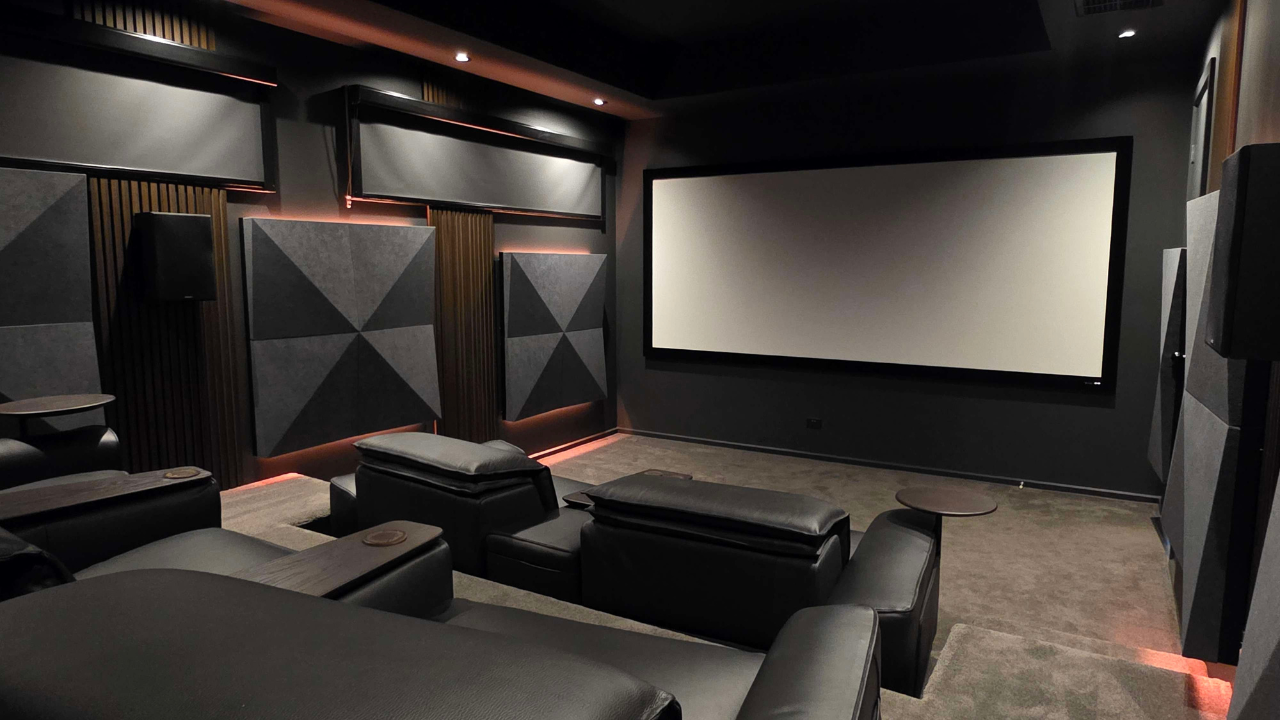

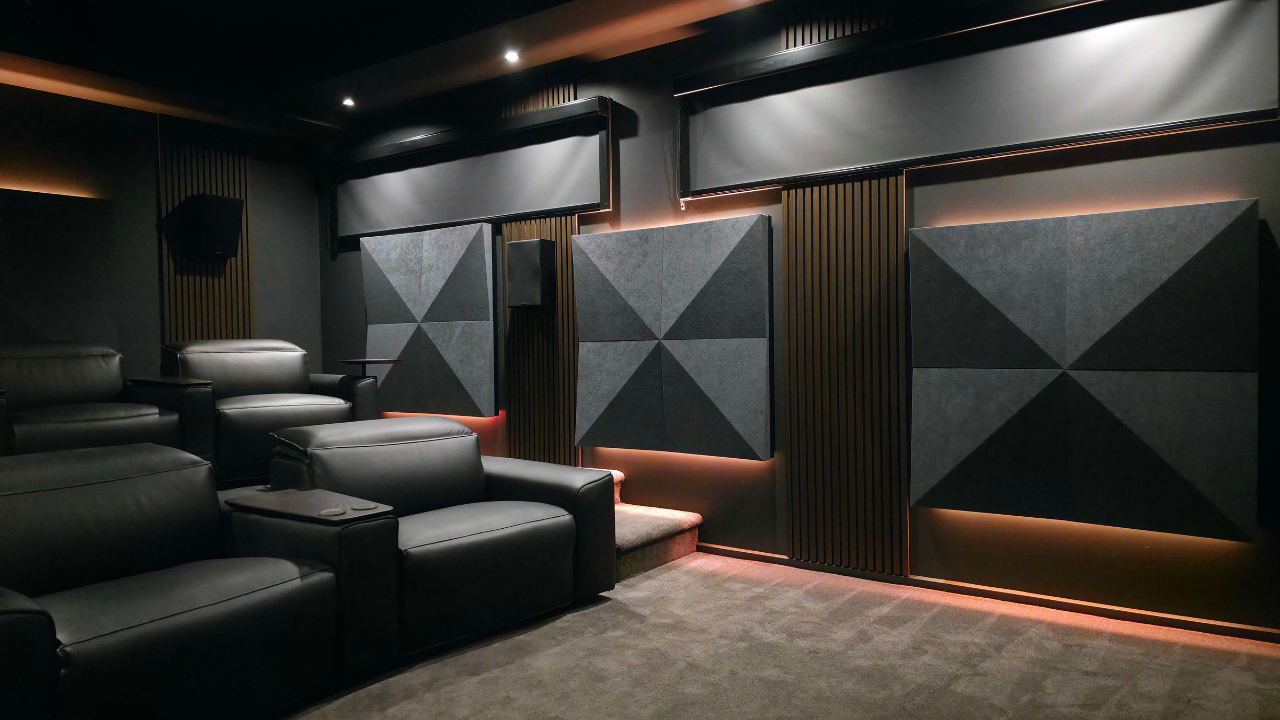

Artnovian absorbers and diffusers, smoked oak acoustic wall panels, and carefully treated window areas help control reflections and enhance clarity, creating a balanced and natural listening environment.

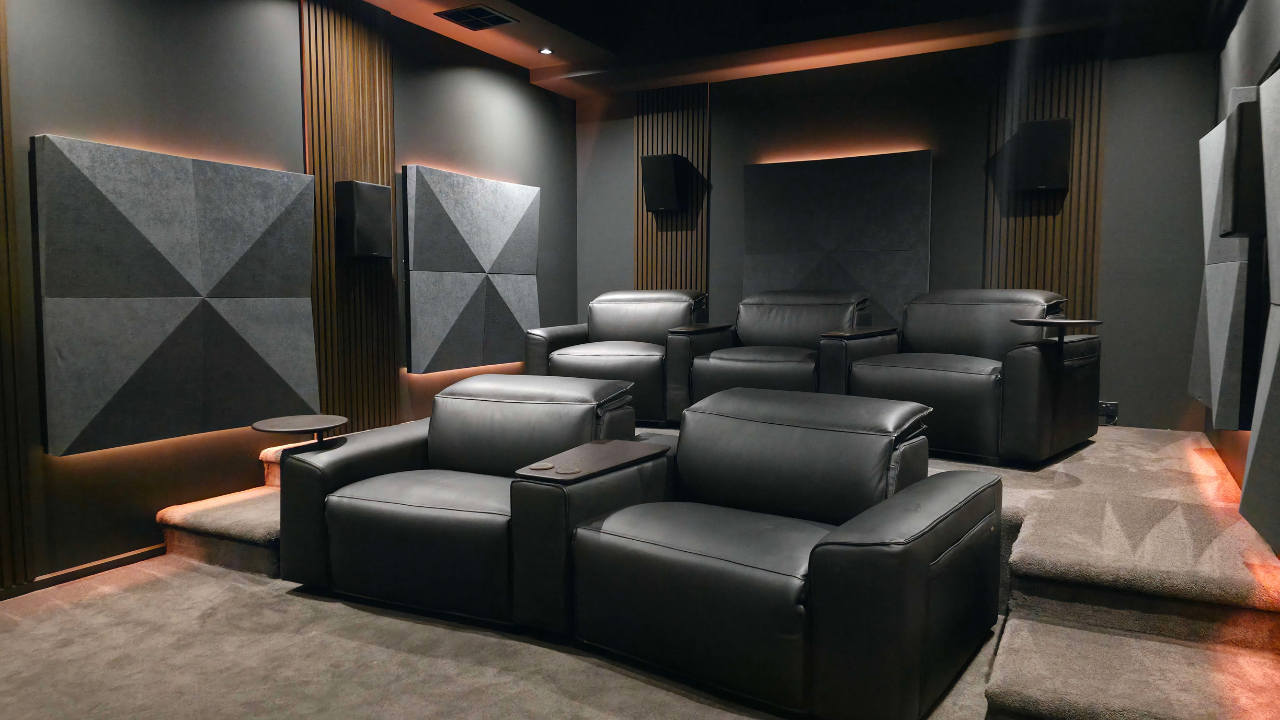

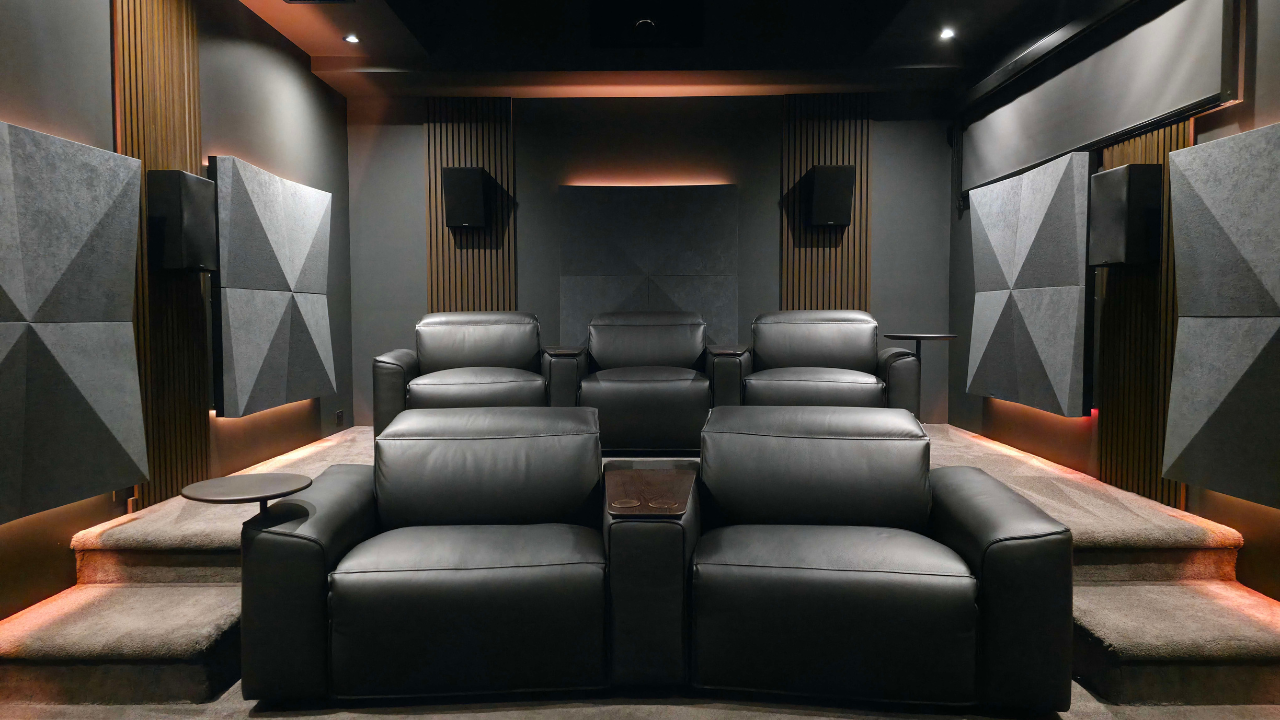

Comfort was equally important, with King Living Cloud V seating providing a premium viewing experience for family and guests.

Intelligent lighting and automation

The cinema's atmosphere is enhanced through a fully integrated lighting and control system.

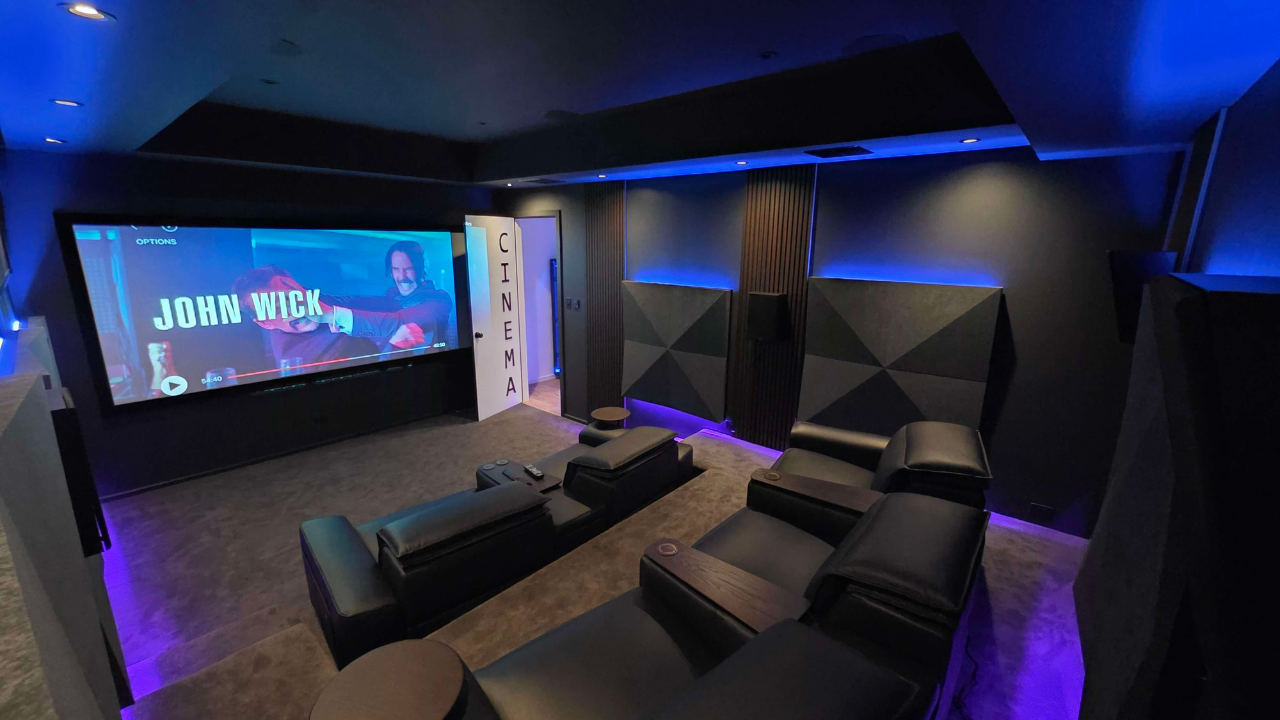

Tiltable LED downlights, illuminated riser steps and RGB lighting integrated with the acoustic panels create a sophisticated ambience before, during and after each movie session.

A Shelly Touch panel, mobile app integration and Google Home compatibility allow Matt to control lighting, equipment and custom scenes with a single touch.

Fingerprint access adds another layer of convenience while reinforcing the dedicated cinema experience.

From the first trailer to the final credits, every element works together to recreate the excitement, scale and emotional impact of the big-screen experience at home.

For the ultimate cinema experience at home, play it through Krix.

SYSTEM SPECIFICATIONS

Krix ‍

Partnered equipment

Projector - Epson LS12000B
Receiver/Processor - Anthem MRX740 8K
Amplifier - Elektra HD2 7Channel
Subwoofer amplifier - Yamaha PX8
UHD disc player - Panasonic UB820
Media players - Zidoo Z30 Pro 8K and Nvidia Shield Pro 4K
Screen - 140'' 2.35 Encore cinemascope screen
Rack cooling - AC Infinity Cloudplate T7 fan
Networking - TP-Link 16 Port PoE switch
King Living Cloud V - 2-seater and 3-seater black leather with smoked oak wedge consoles
Artnovian Valley CS - absorbers & diffusers
Smoked Oak Acoustic wood panels
MDF inserts in highlight windows and blackout blinds
Tiltable LED downlights
LED lights in riser steps
RGB LED light strips on top and bottom of Artnovian Panels
Shelly Touch panel
Fingerprint access entry knob
